Product Summary

The EEE1EA4R7SR is a SMT aluminum electrolytic capacitor of 4.7uF.

Parametrics

Absolute maximum ratings: (1)category temp range: -40 to +85℃; (2)rated W.V range: 4 to 100V .DC; (3)Nominal cap. range: 4.7uF; (4)capacitance tolerance: ±20%(120HZ/+20℃); (5)dc leakage current: 1≦0.01CV or 3(μA).

Features

Features: (1)feature endurance: 85℃ 2000h; (2)5.4mm(≤ Φ6.3) height, ROHS directive.

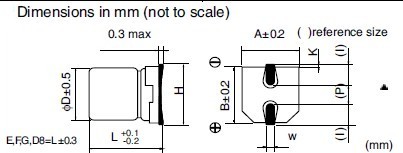

Diagrams
