Product Summary

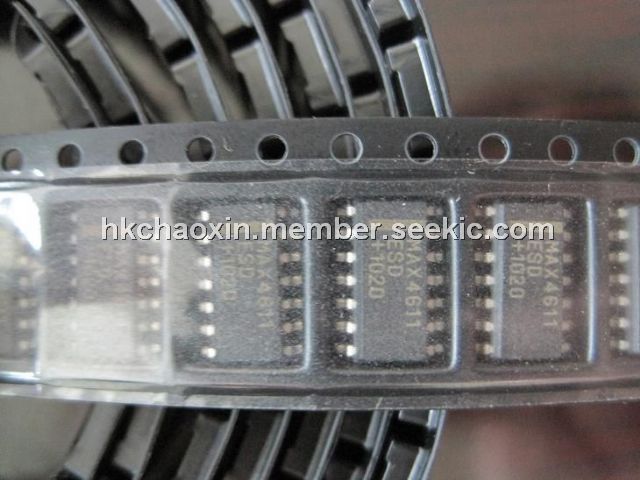

The MAX4611ESD is a quad, low-voltage, single-pole/single-throw (SPST) analog switch. On-resistance (100Ω, max) is matched between switches to 4Ω, max and is flat (4Ω, max) over the specified signal range. Each switch handles V+ to GND analog signal levels. Maximum off-leakage current is only 1nA at TA = +25℃ and 2nA at TA = +85℃.
Parametrics
Absolute maximum ratings: (1)V+: -0.3V to +13V; (2)IN_, COM_, NO_, NC_: -0.3V to (V + +0.3V); (3)Continuous Current (any terminal) (pulsed at 1ms, 10% duty cycle): 20mA; (4)Peak Current (any terminal) (pulsed at 1ms, 10% duty cycle): 40mA; (5)ESD per Method 3015.7: >2kV; (6)Operating Temperature Ranges: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
Features: (1)Offered in Automotive Temperature Range (-40℃ to +125℃); (2)Guaranteed On-Resistance: 100?max (5V Supply), 46?max (12V Supply); (3)Guaranteed Match Between Channels (4Ω max); (4)Guaranteed Flatness Over Signal Range (18Ω max); (5)Off-Leakage Current Over Temperature <2nA at TA = +85℃; (6)>2kV ESD Protection per Method 3015.7; (7)Rail-to-Rail?Signal Handling; (8)TTL/CMOS-Logic Compatible.

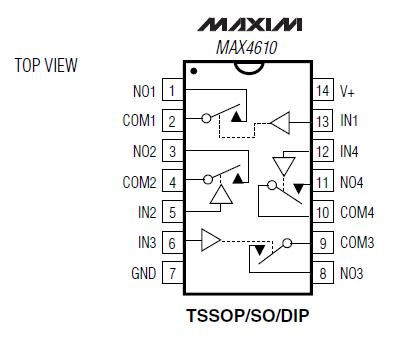

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4611ESD+T |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS Analog Switch |
Data Sheet |
|
|
||||||||||||
 |
MAX4611ESD-T |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX4611ESD+ |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS Analog Switch |
Data Sheet |
|
|
||||||||||||
|
MAX4611ESD |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
