Product Summary

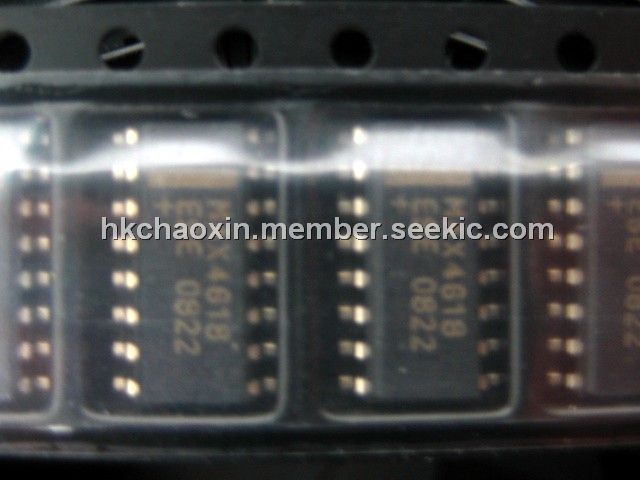

The MAX4618ESE is a high-speed, low-voltage, CMOS analog IC. It is configured as two 4-channel multiplexer.
Parametrics
Absolute maximum ratings: (1)Voltages Referenced to GND VCC, A, B, C, or Enable:-0.3V to +6V; (2)Voltage into Any Analog Terminal:-0.3V to (VCC + 0.3V); (3)Continuous Current into Any Terminal:±75mA; (4)Peak Current, X_, Y_, Z_(pulsed at 1ms, 10% duty cycle):±200mA; (5)Operating Temperature Ranges:-40℃ to +85℃; (6)Storage Temperature Range:-65℃ to +150℃; (7)Lead Temperature (soldering, 10sec):+300℃.
Features
Features: (1)Fast Switching Times:15ns tON,10ns tOFF; (2)Guaranteed On-Resistance:10Ω max (+5V Supply),20Ω max (+3V Supply); (3)Guaranteed 1Ω On-Resistance Match Between; (4)Channels (single +5V supply); (5)Guaranteed Low Off-Leakage Current:1nA at +25℃ ; (6)Guaranteed Low On-Leakage Current:1nA at +25℃ ; (7)+2V to +5.5V Single-Supply Operation; (8)TTL/CMOS-Logic Compatible; (9)Low Crosstalk: <-96dB ; (10)High Off-Isolation: <-93dB; (11)Low Distortion: <0.017% (600Ω).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4618ESE |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX4618ESE+ |
Maxim Integrated Products |
Multiplexer Switch ICs 4:1 2Ch Low Voltage Analog MUX |
Data Sheet |
|
|
||||||||||||
|
MAX4618ESE+T |
Maxim Integrated Products |
Multiplexer Switch ICs 4:1 2Ch Low Voltage Analog MUX |
Data Sheet |
|
|
||||||||||||
 |
MAX4618ESE-T |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
