Product Summary

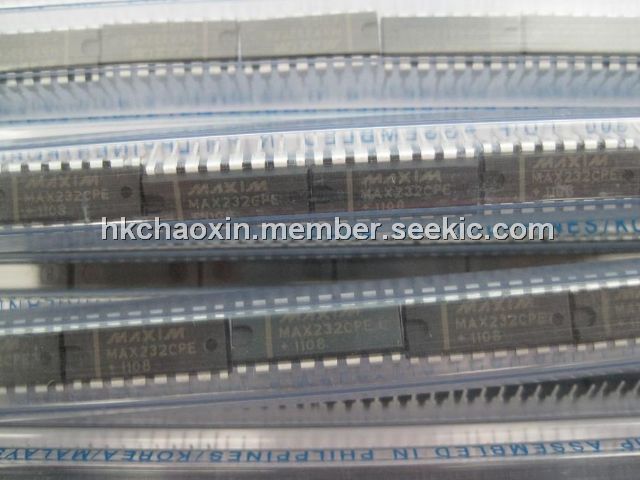

The MAX232CPE is a line driver/receiver. It is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. Its package is DIP-16.
Parametrics
Absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V: +(VCC - 0.3V) to +14V; (3)V-: +0.3V to -14V; (4)Input Voltages: TIN -0.3V to (VCC + 0.3V); RIN±30V; (5)Output Voltages: TOUT: (V+ + 0.3V) to (V- - 0.3V): ROUT: -0.3V to (VCC + 0.3V).
Features
Features: (1)For Low-Voltage, Integrated ESD Applications; (2)For Low-Cost Applications.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX232CPE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX232CPE |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
