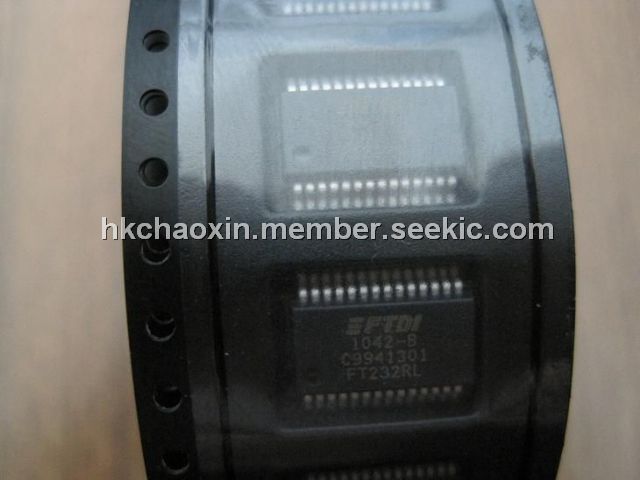

Product Summary

The FT232RL is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available.

Parametrics

Absolute maximum ratings: (1)Storage Temperature: -65℃ to 150℃; (2)Floor Life (Out of Bag) At Factory Ambient ( 30℃ / 60% Relative Humidity): 168 Hours (IPC/JEDEC J-STD-033A MSL Level 3 Compliant); (3)Ambient Temperature (Power Applied): -40℃ to 85℃; (4)Vcc Supply Voltage: -0.5 to +6.00V; (5)D.C. Input Voltage - USBDP and USBDM: -0.5 to +3.8V; (6)D.C. Input Voltage - High Impedance Bidirectionals: -0.5 to +(Vcc +0.5)V; (7)D.C. Input Voltage - All other Inputs: -0.5 to +(Vcc +0.5)V; (8)D.C. Output Current - Outputs: 24mA; (9)DC Output Current - Low Impedance Bidirectionals: 24mA; (10)Power Dissipation (Vcc = 5.25V): 500mW.

Features

Features: (1)Support for bus powered, self powered, and high-power bus powered USB configurations; (2)Integrated 3.3V level converter for USB I/O ; (3)Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic; (4)True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.; (5)High I/O pin output drive option.; (6)Integrated USB resistors.; (7)Integrated power-on-reset circuit.; (8)Fully integrated clock - no external crystal, oscillator, or resonator required; (9)Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required; (10)UART signal inversion option; (11)USB bulk transfer mode; (12)3.3V to 5.25V Single Supply Operation; (13)Low operating and USB suspend current; (14)Low USB bandwidth consumption; (15)UHCI / OHCI / EHCI host controller compatible; (16)USB 2.0 Full Speed compatible.

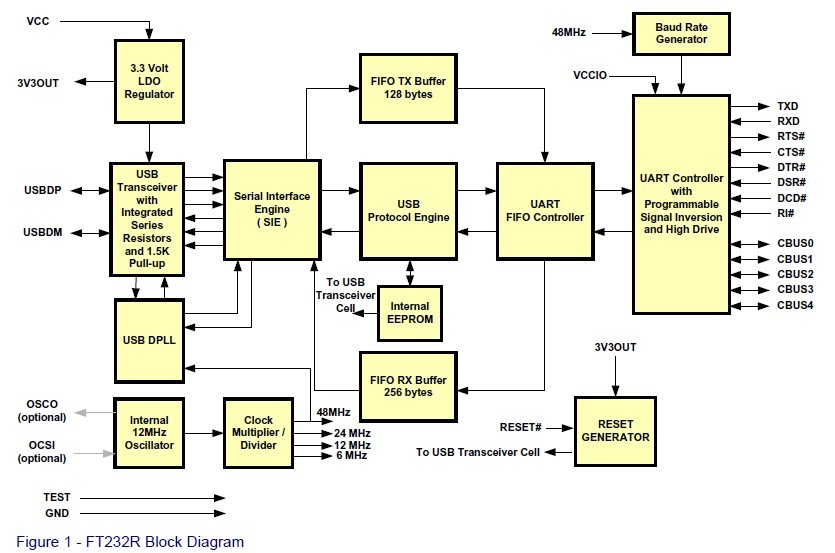

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FT232RL
FT232RL
Other

Data Sheet
Negotiable
FT232RL-REEL
FT232RL-REEL
FTDI
USB Interface IC USB to Serial UART Enhanced IC SSOP-28
Data Sheet
