Product Summary

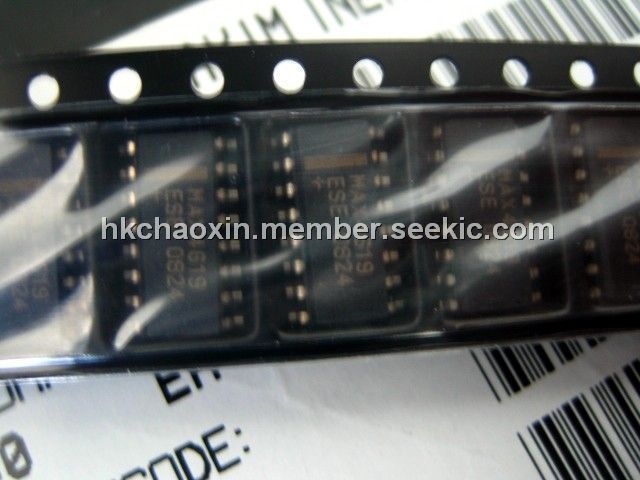

The MAX4619ESE is a high-speed, low voltage, CMOS analog IC configured as an 8-channel multiplexer (MAX4617), two 4-channel multiplexers (MAX4618), and three single-pole/double-throw (SPDT) switches (MAX4619).
Parametrics
Absolute maximum ratings: (1)Voltages Referenced to GND; (2)VCC, A, B, C, or Enable: -0.3V to +6V; (3)Voltage into Any Analog Terminal: -0.3V to (VCC + 0.3V); (4)Continuous Current into Any Terminal: ±75mA; (5)Peak Current, X_, Y_, Z_; (6)(pulsed at 1ms, 10% duty cycle): ±200mA; (7)Continuous Power Dissipation (TA = +70℃); (8)TSSOP (derate 6.7mW/℃ above +70℃): 533mW; (9)Narrow SO (derate 8.70mW/℃ above +70℃): 696mW; (10)Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (11)Operating Temperature Ranges: -40℃ to +85℃; (12)Storage Temperature Range: -65℃ to +150℃; (13)Lead Temperature (soldering, 10sec): +300℃.
Features
Features: (1)Fast Switching Times: 15ns tON, 10ns tOFF; (2)Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053 and MAX4581/MAX4582/MAX4583; (3)Guaranteed On-Resistance: 10W max (+5V Supply), 20W max (+3V Supply); (4)Guaranteed 1W On-Resistance Match Between Channels (single +5V supply); (5)Guaranteed Low Off-Leakage Current: 1nA at +25℃; (6)Guaranteed Low On-Leakage Current: 1nA at +25℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4619ESE |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX4619ESE+ |
Maxim Integrated Products |
Multiplexer Switch ICs High-Speed, Low-Volt age, CMOS Analog Mul |
Data Sheet |
|
|
||||||||||||
|
MAX4619ESE+T |
Maxim Integrated Products |
Multiplexer Switch ICs High-Speed, Low-Volt age, CMOS Analog Mul |
Data Sheet |
|
|
||||||||||||
|
MAX4619ESE-T |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
