The MAX4610ESD quad, low-voltage, single-pole/single-throw (SPST) analog switch is pin-compatible with the industry-standard 74HC4066 analog switch.
Parametrics
Absolute maximum ratings: (1)V+: -0.3V to +13V; (2)IN_, COM_, NO_, NC_ : -0.3V to (V + +0.3V); (3)Continuous Current (any terminal) (pulsed at 1ms, 10% duty cycle): 20mA; (4)Peak Current (any terminal) (pulsed at 1ms, 10% duty cycle): 40mA; (5)ESD per Method 3015.7: >2kV; (6)Continuous Power Dissipation (TA = +70℃): TSSOP (derate 6.3mW/℃ above +70℃): 500mW, Narrow SO (derate 8.00mW/℃ above +70℃): 640mW, Plastic DIP (derate 10.00mW/℃ above +70℃): 800mW; (7)Operating Temperature Ranges: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.
Features
Features: (1)Pin-Compatible with Industry-Standard 74HC4066; (2)Guaranteed On-Resistance; (3)Guaranteed Match Between Channels (4Ω max); (4)Guaranteed Flatness Over Signal Range (18Ω max); (5)Off-Leakage Current Over Temperature <2nA at TA = +85℃; (6)>2kV ESD Protection per Method 3015.7; (7)Rail-to-Rail Signal Handling; (8)TTL/CMOS-Logic Compatible.

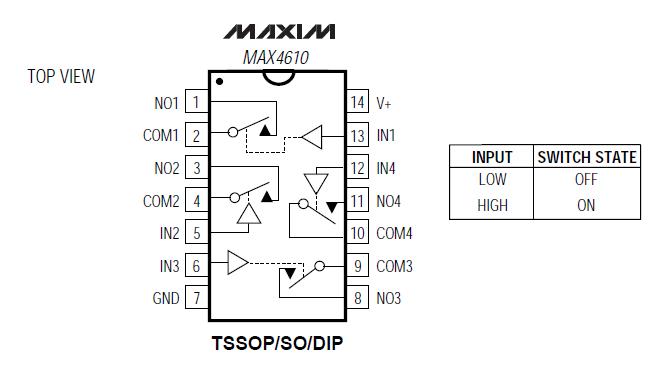

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4610ESD+ |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS Analog Switch |
Data Sheet |
|
|
||||||||||||
 |
MAX4610ESD+TG074 |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS Analog Switch |
Data Sheet |
|
|
||||||||||||
|
MAX4610ESD-T |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX4610ESD+T |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS Analog Switch |
Data Sheet |
|
|
||||||||||||
|
MAX4610ESD+G074 |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS Analog Switch |
Data Sheet |
|
|
||||||||||||
|
MAX4610ESD |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
