Product Summary
The SST39SF020A-70-4C-PH is a CMOS Multi-Purpose Flash (MPF) manufactured with SST’s proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.
Parametrics
Absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD + 0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -1.0V to VDD + 1.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V; (6)Package Power Dissipation Capability (Ta = 25℃): 1.0W; (7)Through Hold Lead Soldering Temperature (10 Seconds): 300℃; (8)Surface Mount Lead Soldering Temperature (3 Seconds): 240℃; (9)Output Short Circuit Current: 100 mA.
Features
Features: (1)Organized as 128K x8 / 256K x8 / 512K x8; (2)Single 5.0V Read and Write Operations; (3)Superior Reliability: Endurance: 100,000 Cycles (typical), Greater than 100 years Data Retention; (4)Low Power Consumption: Active Current: 10 mA (typical), Standby Current: 30 μA (typical); (5)Sector-Erase Capability: Uniform 4 KByte sectors; (6)Fast Read Access Time: 45 and 70 ns; (7)Latched Address and Data.

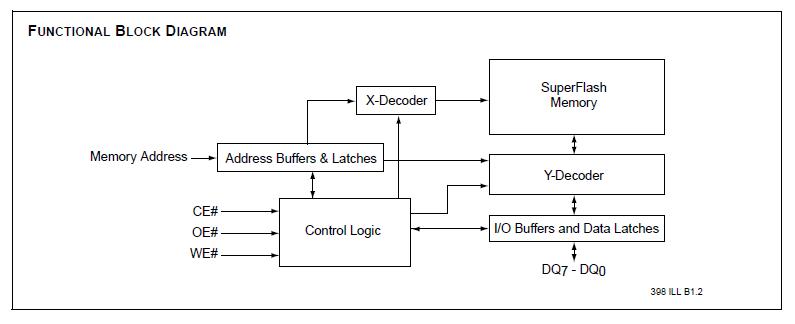

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST39SF020A-70-4C-PH |
Microchip Technology |
Flash 256K X 8 70ns |
Data Sheet |
Negotiable |
|
||||||||||||
|
SST39SF020A-70-4C-PHE |
Microchip Technology |
Flash 256K X 8 70ns |
Data Sheet |
|
|
||||||||||||
